Top-notch Ultra Rugged Android PDA All-in-one with Camera Phone Scanner

Beijing Speedata Technology Co., Ltd

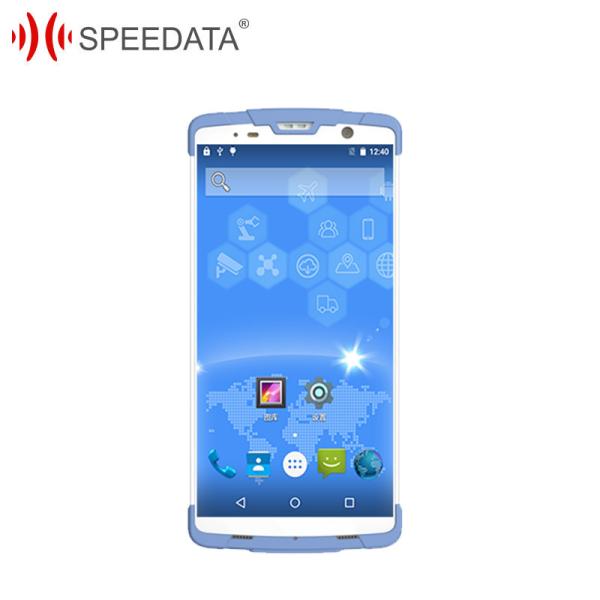

Top-notch Ultra Rugged Android PDA All-in-one with Camera Phone Scanner

Brand Name : SPEEDATA

Model Number : SD55MD

Certification : CCC, CE, ROHS, FCC, BIS, Mould proof

Place of Origin : Beijing, China

MOQ : 1pc

Payment Terms : T/T, L/C

Supply Ability : 10000pcs/Mouth

Delivery Time : 5-8 working days

Packaging Details : Standard

OS : Android 8.1

CPU : Octa-core 2.0GHz

Memory capacity : 4GB RAM+64GB ROM

Notification : Sound, vibration, LED prompt

Contact Now

Top-notch Ultra Rugged Android PDA All-in-one with Camera Phone Scanner


SD55MD is a go-anywhere all-in-one with a camera, a phone, an integrated barcode scanner. With an ingress protection of IP65, it is strongly protected against wind, rain and dust. Also, using anti-bacterial materials for the body allows users to clean it with alcohol. Medical staff will find it very useful in care nursing, medical record, infusion, blood bank and other application scenarios.

Top-notch Ultra Rugged Android PDA All-in-one with Camera Phone Scanner

SD55MD Basic Parameters
OS Android 8.1
CPU Octa-Core 2.0GHz
RAM 4GB
ROM 64GB
Expansion 2Nano SIM cards,
1micro SD card slot up to 128GB
USB-Type C
support fast charging, OTG,
Support fast charging5V/9A 1.67,
charging and bottom USB connector
Keypad 2 audio buttons+2 function buttons(One on the left and one on the right)+ 1 power button
Notification Sound/vibration/LED prompt
Audio Front dual stereo speakers
Volume 90db±3db(test distance 10cm)
Dimentions 150*72.5*15mm
Weight( with battery) 240g
Camera
Camera Rear camera 13MP AF+High brightness LED flash+Front camera 5MP FF
Focus mode Autofocus ; Fixed focus
Display
Display 5.5 inch Full Screen
Resolution 720*1440
Touch Panel 5-point capacitive touch screen
Power
Battery 4500mAh
Charging PE fast charging, full charging time< 4 hours
Interface support USB-TypeC, support fast charging, support OTG
Communication
Bluetooth BT4.1 BLE
WIFI IEEE 802.11 a/b/g/n 2.4G 5G dual frequency
WWAN FDD-LTE B1/B3/B5/B7
TDD-LTE B38/B39//B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0/BC1
GPS Positioning Module GPS,GLONASS,BeiDou
Performance
Operation Temperature -20℃ ~55℃
Storage Temperature -30℃ ~+70℃
Humidity 5%~95%(No condensation)
Sealing IP65
Drop Test In the operating range, 6 sides can withstand the impact of 1.5 meters
drop to the concrete floor
ESD ±15kV Air Discharge, ±8kV Contact Discharge
Certificate CCC,CE,ROHS,FCC,BIS,Mould proof
Extensibility
NFC Support agreement:ISO14443A/B, ISO15693
reading distance: 0~5cm

Barcode Scanning

Support code system

CM60, Support code system:EAN13
EAN8, UPCA, UPCE, Code 128, Code 39
Codabar, UCC/EAN128, RSS,ITF, ITF14
ITF6, ISSN, ISBN, Standard 25, Matrix 25
Industrial 25,Plessey, MSI Plessey, Code 11
Code 93, PDF417, QR Code, DataMatrix
AZTEC, Hanxin Code, Maxicode, Micro QR
Micro PDF417, Composite
PSAM Support
Sensor Geomagnetism, acceleration, optical distance
DC55 Single
charging base (optional)
Charging input:5V/9V 1.67A

ABOUT SPEEDATA

Founded in 2008, Beijing Speedata Technology Co., Ltd. is a domestic advanced IoT technology company with a deep technical background of intelligent terminals, and is focusing on productization of IoT technology. Driven by technology research and development, after several years’ hard working, Speedata has accumulated rich experience in fields of embedded, IoT technology and industrial design. Mainly producing Industrial Tablet, Handheld PDA, RFID Readers and customers are also able to design their own.
